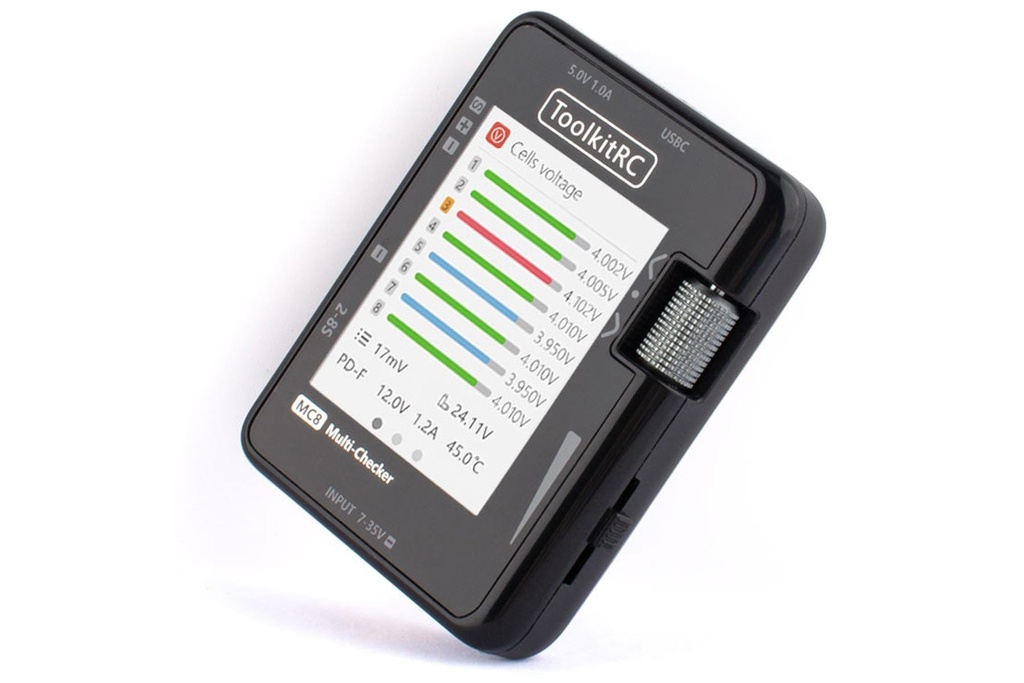

MC8 Advanced 2-8S Battery Checker/Balancer and Servo Multi-Tester from ToolkitRC - TK31600
Introducing the ToolkitRC MC8, the ultimate tool for RC enthusiasts and modelers. This compact yet powerful device features a vibrant color display that allows you to monitor battery status at a glance. With the capability to check 2-8S battery packs, the MC8 simplifies battery management and even provides one-touch cell balancing. The MC8 is compatible with output signals like PWM, PPM, and SBUS, making testing of your radio receiver possible as well. Its versatile design also includes a PWM output that functions as a servo tester, while the USB-C 20W port enables fast charging for your mobile devices, making it an essential companion for any RC adventure.
Navigating the MC8 is effortless thanks to its high-quality metal UI scrolling control wheel, ensuring smooth and intuitive menu access. The large, backlit 2.0" IPS LCD screen provides a clear view of all settings and parameters, even in low-light conditions. Supporting input voltages ranging from 7-35V via its built-in XT60 socket, the MC8 offers multiple ports for added functionality, including a signal port for servos, a 2–8S balance port, and USB-A for firmware upgrades. Capable of measuring and balancing various battery types such as LiPo, LiHV, LiFe, and LiIon, the MC8 also features over-discharge protection, making it a must-have tool for both field and workshop use.
 |
Multifunctional and Compact The MC8 may be small in size, but it’s BIG on features! |
 |
32Bit ARM Processor Smarter, safer, and more accurate than ever, the high-performance processor provides voltage accuracy of <0.005V and pulse width accuracy of 1us. |
Features:
- Large color display for easy battery status monitoring at a glance
- Compatibility with various battery types, measuring and balancing 2-8S LiPo, LiHV, LiFe, and LiIon batteries
- One-touch battery balancing for simplified battery management
- Supports output signals for PWM, PPM, and SBUS
- PWM output that functions as a servo tester
- Fast charging capability with a USB-C 20W output port for quick mobile device charging
- Intuitive navigation using a high-quality metal UI scrolling control wheel
- Clear backlit display featuring a 2.0" IPS LCD screen with 320x240 pixel resolution

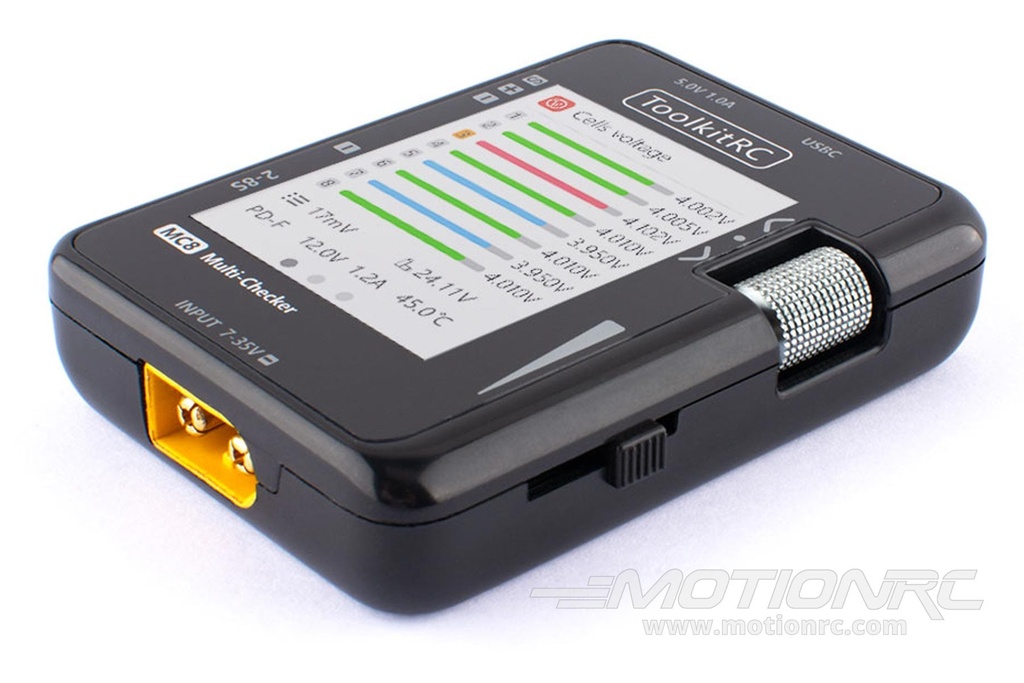

- Wide input voltage range accepting 7-35V via built-in XT60 socket

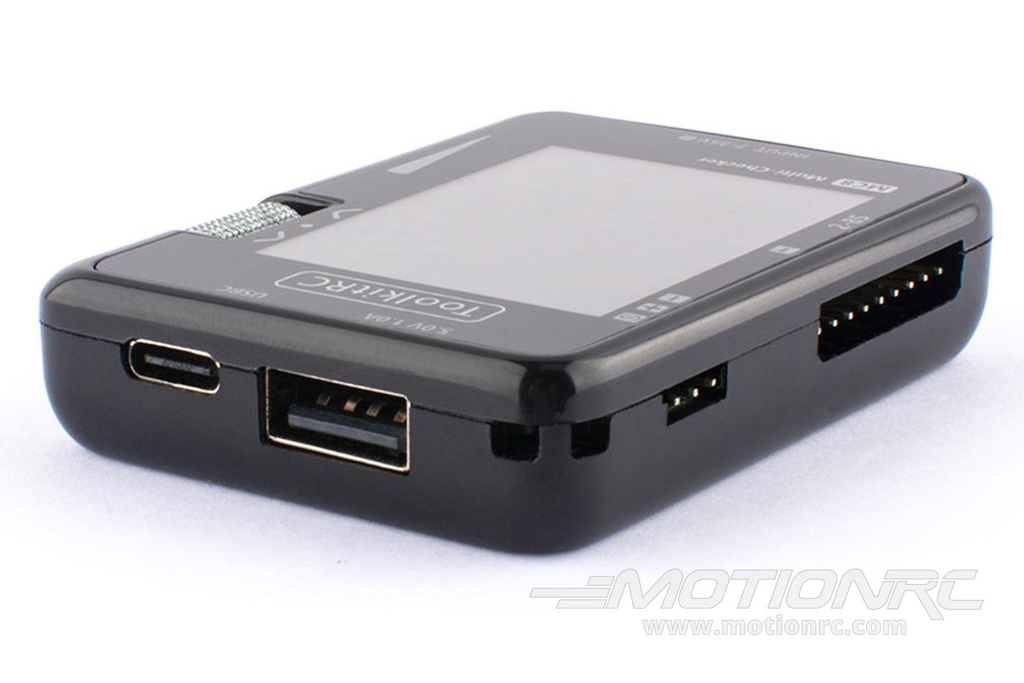

- Multiple ports including a signal port for servos, a 2–8S balance port, and USB-A for firmware upgrades
- Over-discharge protection to ensure safety and longevity of your batteries
- Essential tool for use at the flying field, race track, or workshop
Includes:
- ToolkitRC MC8 Advanced 2-8S Battery Checker/Balancer and Servo Multi-Tester
- USB cable
- User Manual
Requires:
- External power supply/power source
