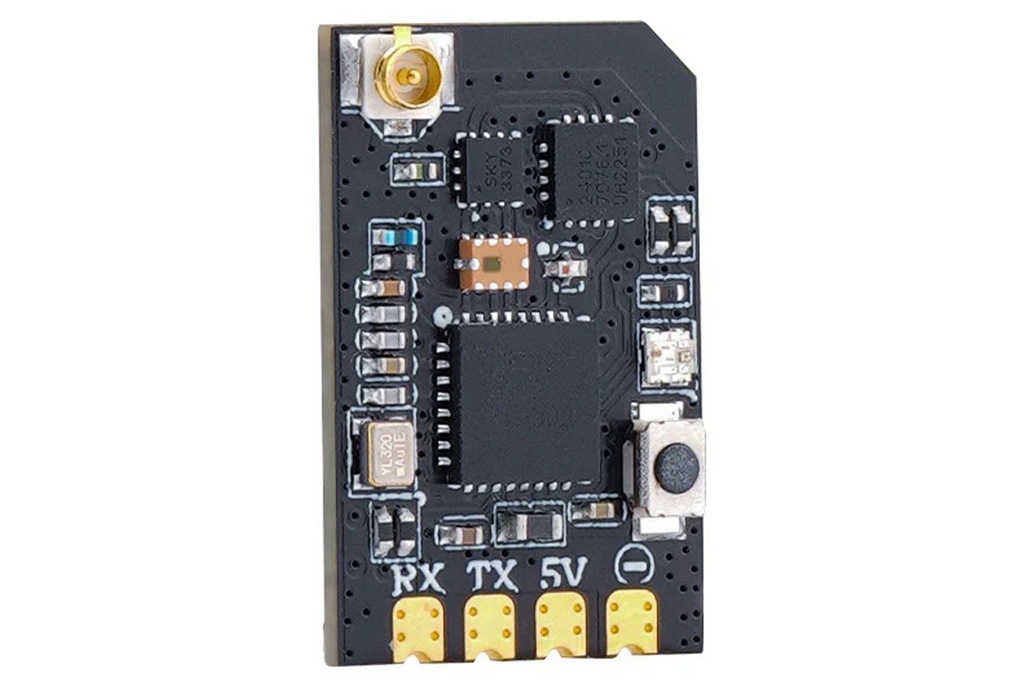

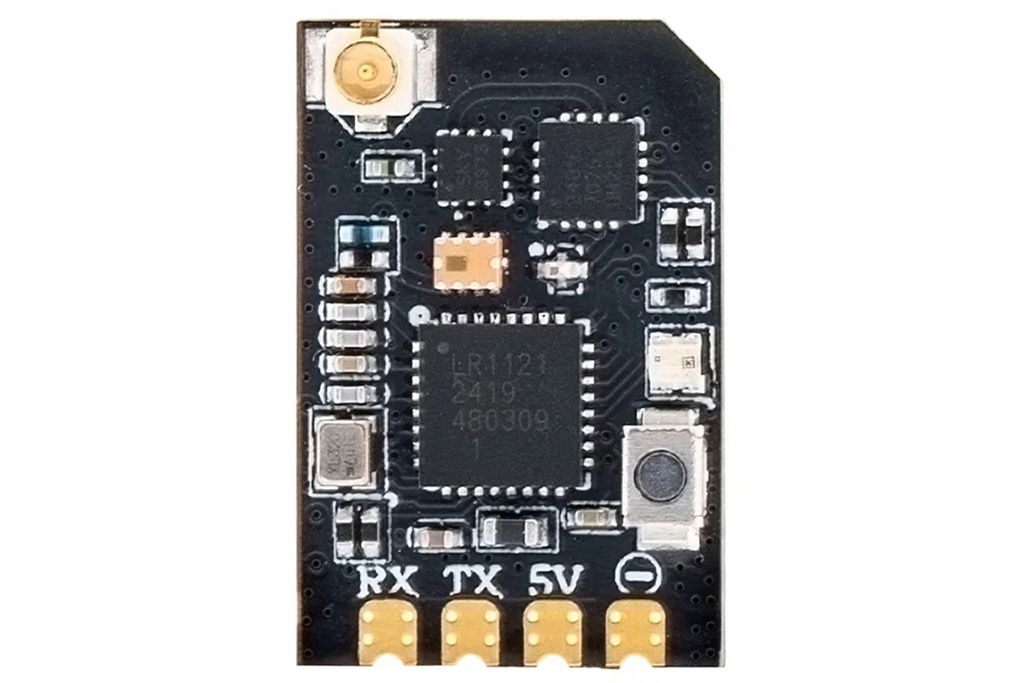

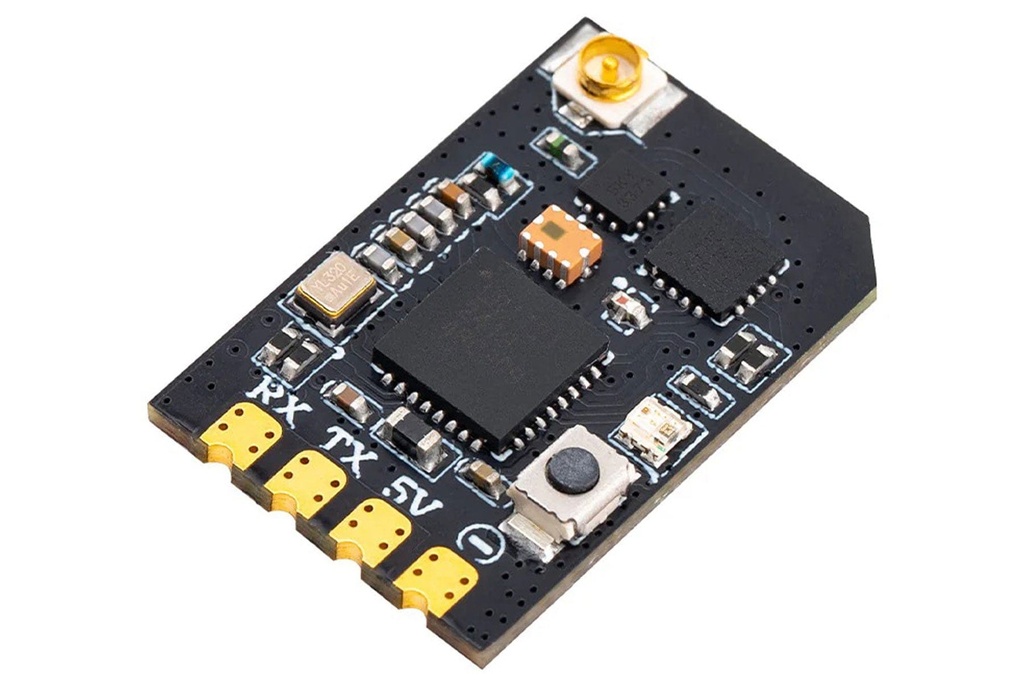

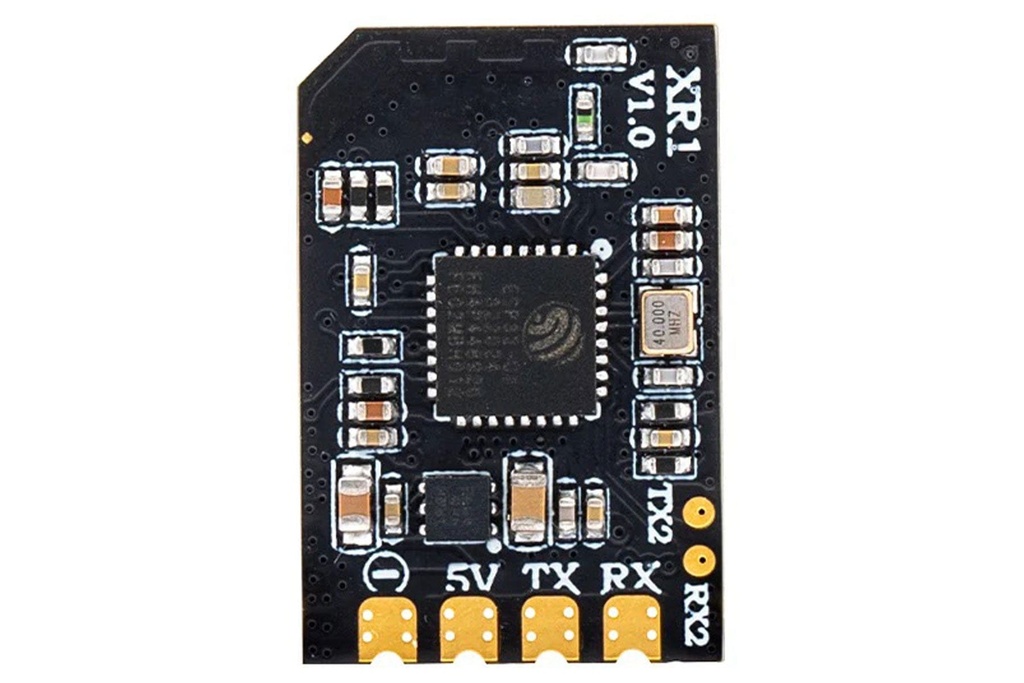

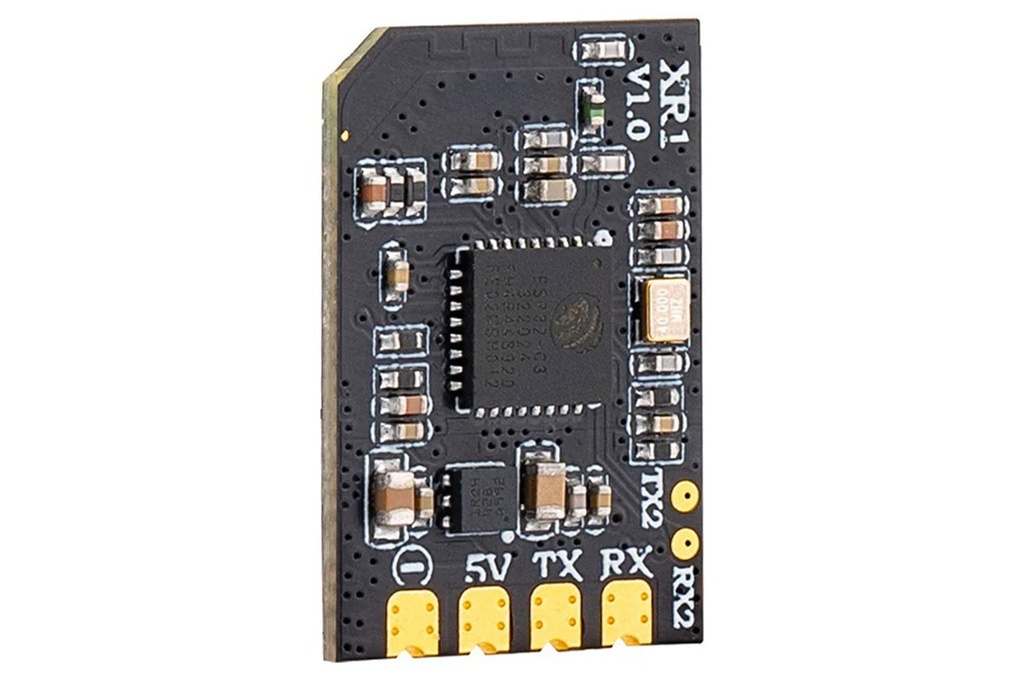

XR1 Nano Multi-Frequency 2.4GHz Antenna ELRS Receiver from RadioMaster - HP0157-XR1-2400
The XR1 Receiver is a highly adaptable and ultra-compact ExpressLRS receiver, measuring only 20 x 13mm. It utilizes the cutting-edge third-generation Semtech LR1121 transceiver, allowing operation on both 2.4GHz and Sub-G 900MHz bands. Whether you choose 2.4GHz or 900MHz, the XR1 offers outstanding range and sensitivity in a lightweight design, ideal for any setup. With the reliability of ExpressLRS, you can concentrate on flying without concerns about link quality.
For added convenience, the XR1 includes built-in Wi-Fi for easy configuration and firmware updates. You can effortlessly access and manage settings through a user-friendly WebUI on your PC or mobile device.
The XR1 Receiver is available in three configurations, ensuring you have the flexibility to meet your exact requirements: Choose between 2.4GHz, Sub-G 900MHz, or a Dual-Band antenna that allows switching between 2.4Ghz and 900Mhz without an antenna change! All antenna types are available as optional accessories so you can change frequency at a later stage without needing to purchase a new receiver!
 |
 |
 |
 |
 |
 |
 |
 |
Features:
- ExpressLRS 2.4GHz or Sub-G 900MHz
- ESP32C3 high-performance MCU
- Semtech LR1121 transceiver
- Additional UART port
- Secondary port for advanced functionality
- Castled pads for easy soldering
Includes:
- RadioMaster XR1 Nano Multi-Frequency 2.4GHz Antenna ELRS Receiver

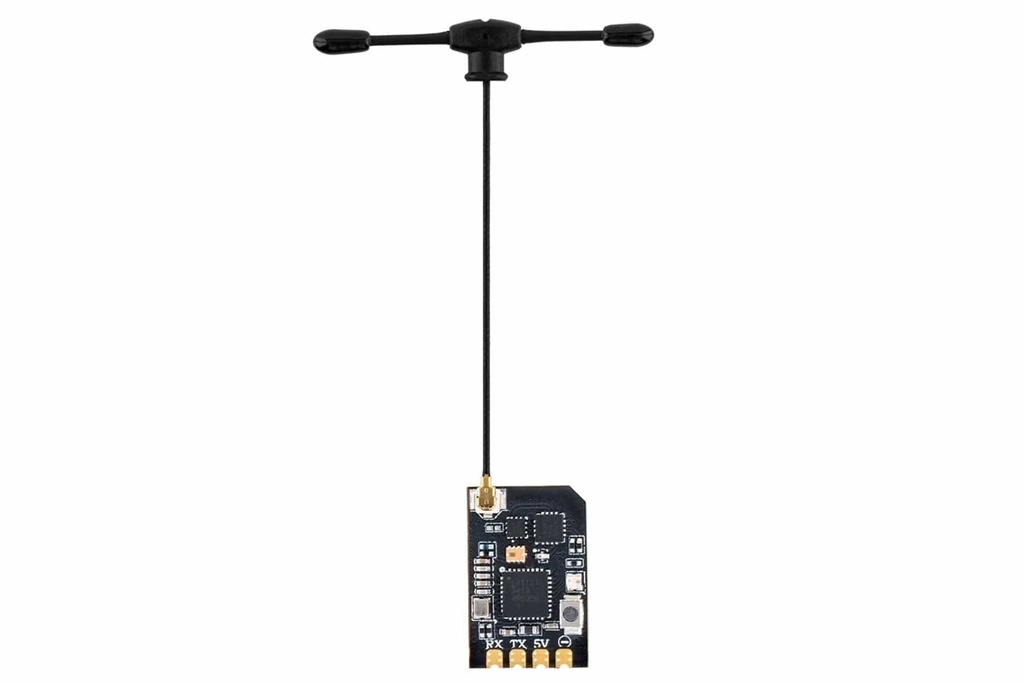

- 2.4GHz T-antenna
- CRSF wire
- 3x heat shrink tube
- User manual
Requires:
- ELRS compatible transmitter
